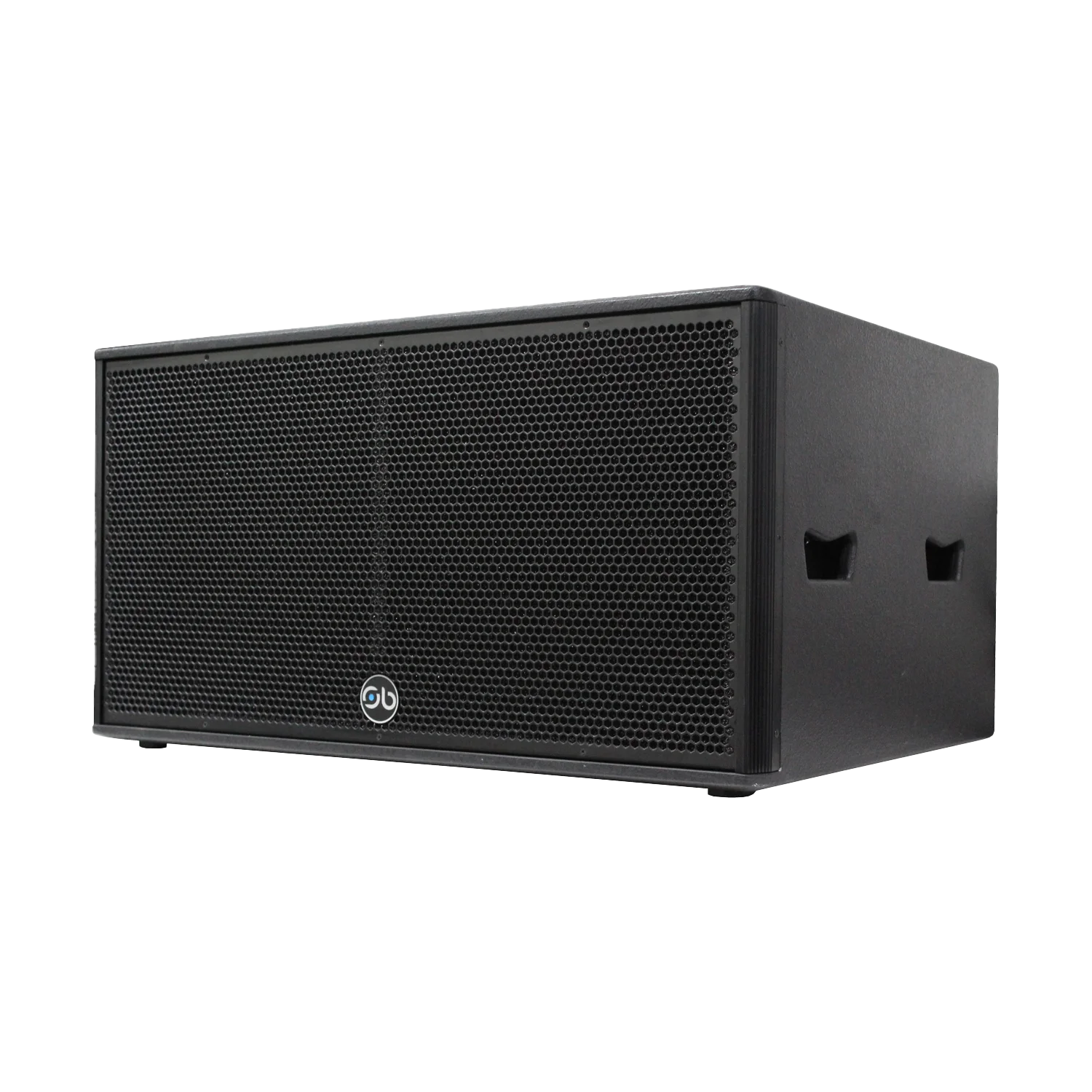

The powerful Sound Barrier NX215S sub-bass system is designed to be used with large-scale NEXONE series systems to extend and increase the total low-frequency output power. It can also be used as the low-frequency section of a bi-amped or tri-amped NEXONE series system. The Sound Barrier NX215S provides good mid-bass punch with extended sub-bass output from two direct-radiating 15 drivers with 4-inch high-temperature voice coils. The birch wood cabinet is fitted with side wood recessed handles and features large area porting to reduce air noise.
Acoustic Specifications
FREQUENCY RESPONSE:
30Hz-400Hz (-10dB), 32Hz-300Hz (-3dB)
MAX SPL:
135 DB
SENSITIVITY:
100dB/1W/1M
CROSSOVER:
140Hz, -24dB/OCT, LOW PASS FILTER, ACTIVE
IMPEDANCE:
4 OHM
Transducers
LOW FREQUENCY:
2 X 15-INCH, 4-INCH VOICE COIL
Power Section
TOTAL POWER HANDLING:
3200W PEAK, 800W RMS
RECOMMENDED AMPLIFIER:
1500W-2000W into 8 Ohm

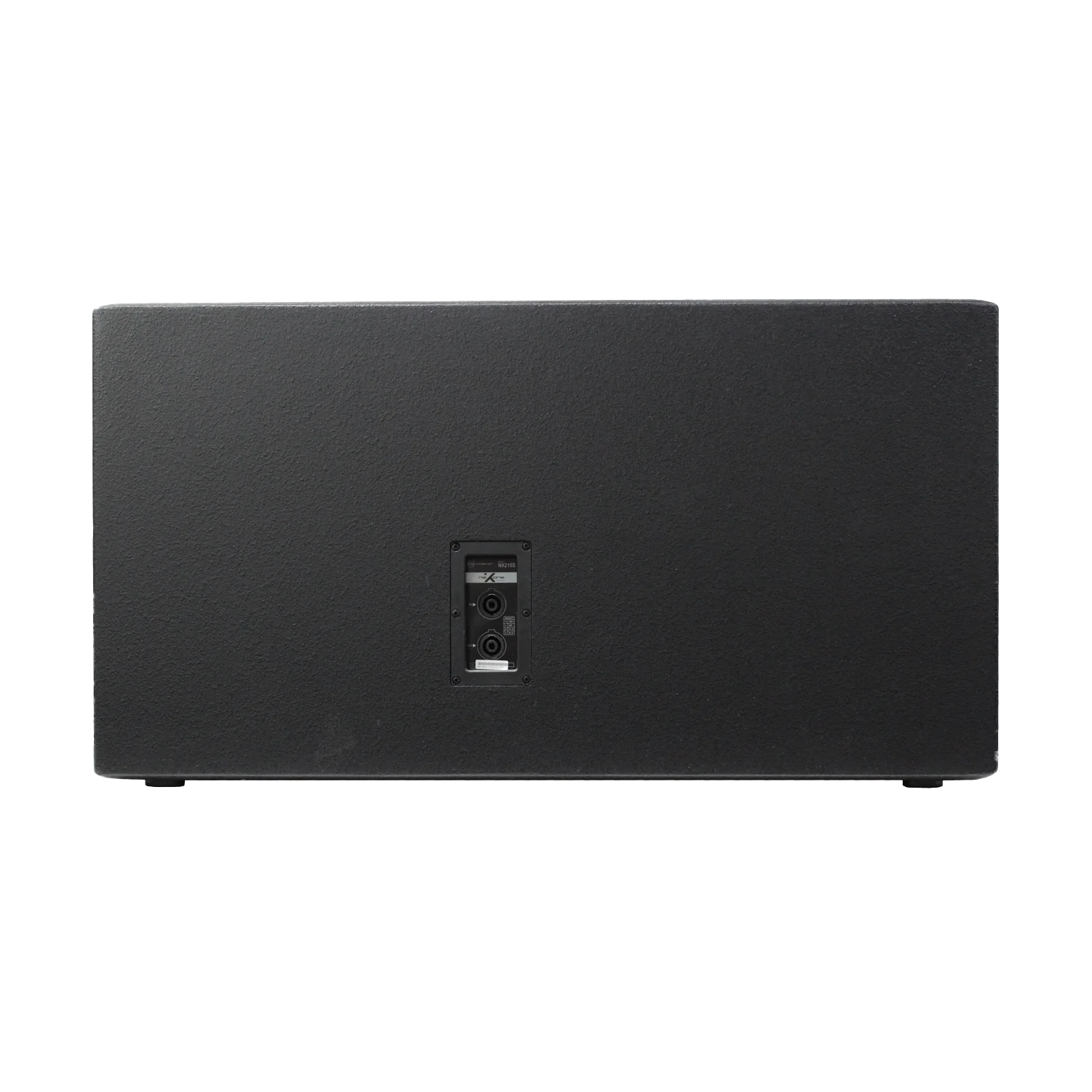

Input / Output Section
INPUT SIGNAL:
NEUTRIK® SPEAKON NL4
OUTPUT CONNECTORS:
NEUTRIK® SPEAKON NL4
Construction
COLOR:
BLACK HIGH RIGIDITY PAINT
HANDLES:
FOUR WOOD RECESSED HANDLE
CABINET MATERIAL:
18MM BIRCH PLYWOOD
GRILLE:
STEEL WITH ACOUSTIC FOAM
Dimensions
WIDTH: 34.7 INCH / 880 mm
DEPTH: 26 INCH / 660 mm
HEIGHT: 18.31 INCH / 465 mm
WEIGHT: 127 LB / 57.5 KG
More details on Sound Barrier’s website
