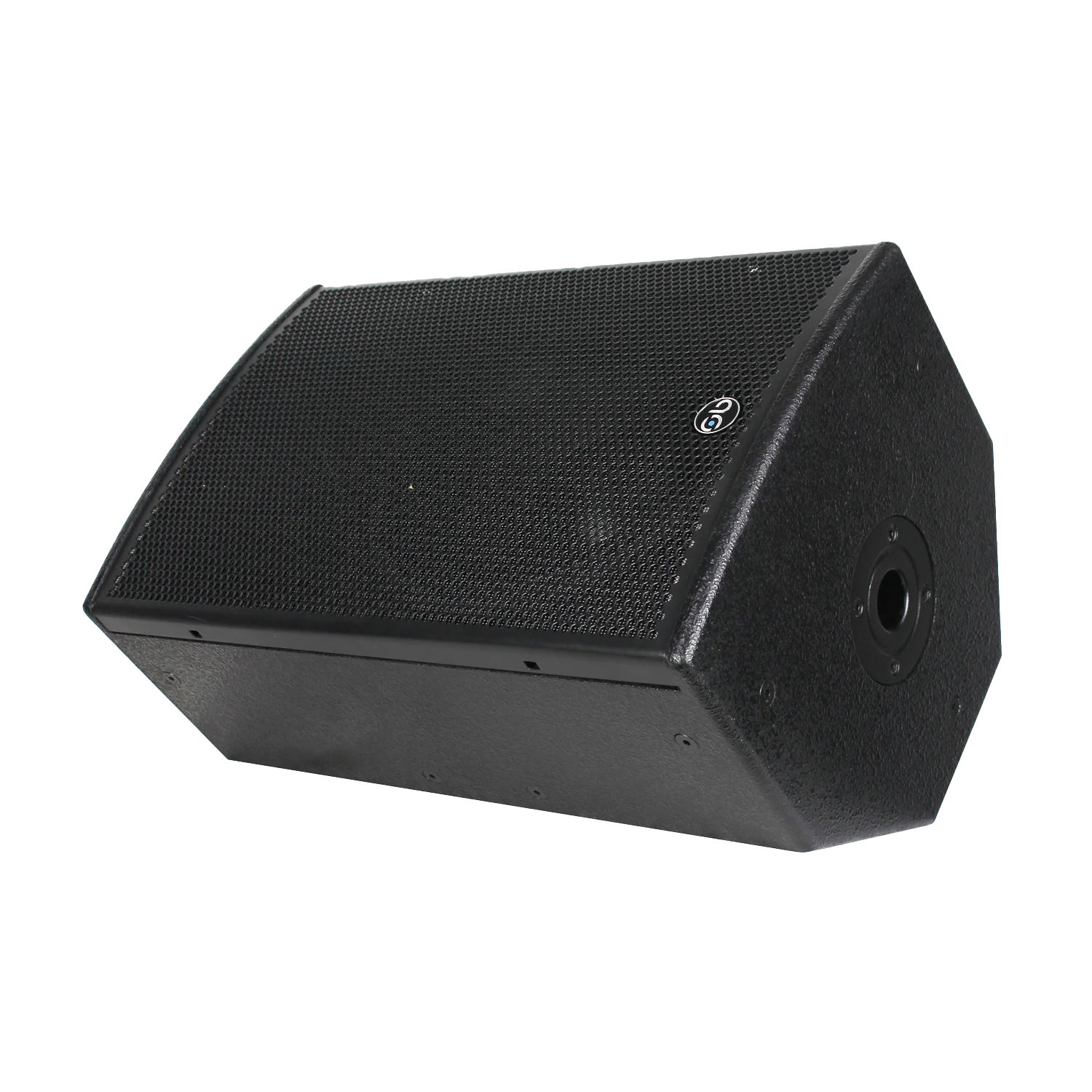

The Sound Barrier NX12M has a variety of professional applications; from distributed sound reinforcement, permanent installation, front fill / infill, or as a stage monitor. With a maximum SPL of 130dB @ 1m, it meets and exceeds the foreground requirements of medium-sized indoor venues such as dance floors that require high sound levels from a compact enclosure.

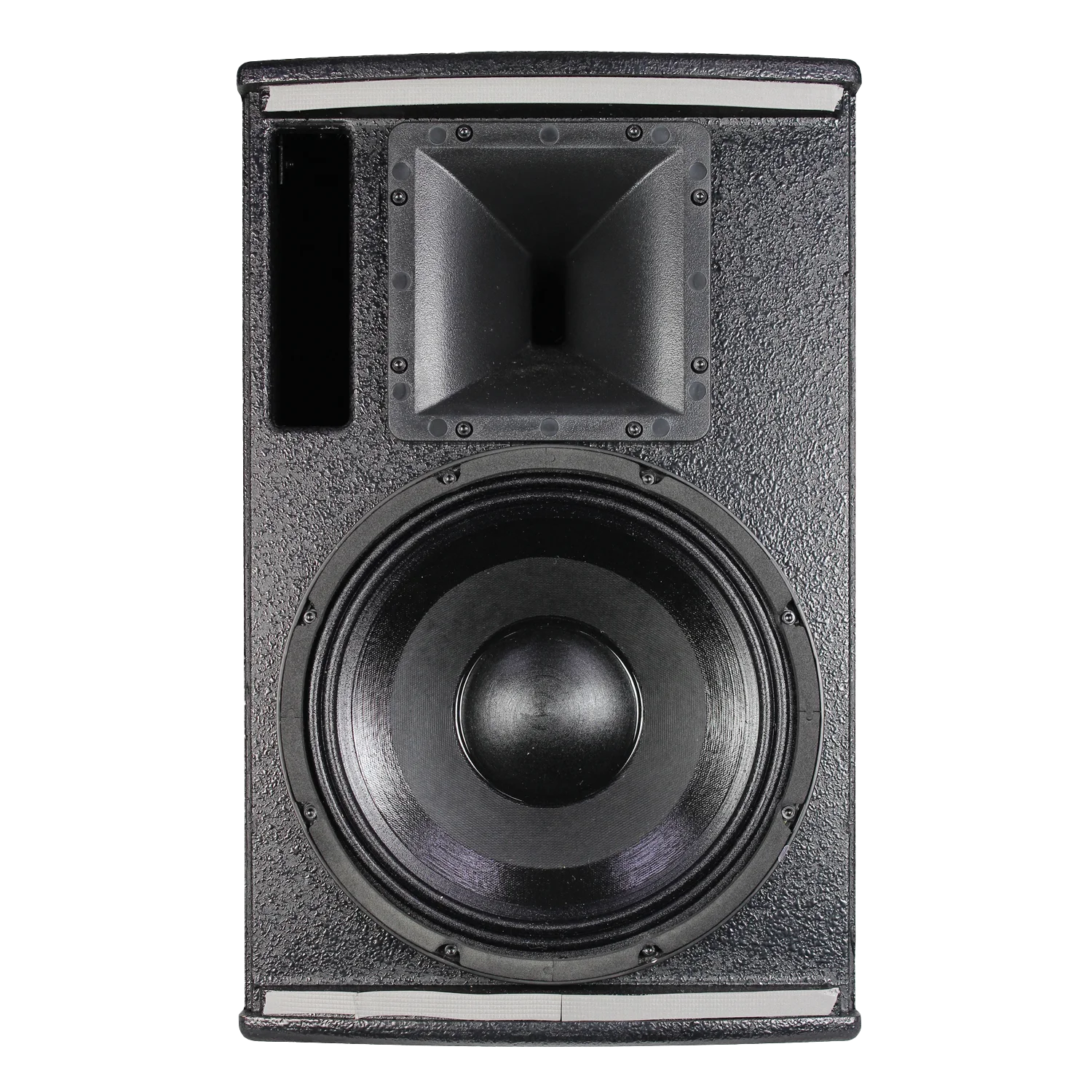

The Sound Barrier NX12M loudspeaker features a high power, high efficiency 12” low-frequency driver and a 1” exit 1.75” titanium diaphragm compression driver with over-current and over-voltage protection. It can be used as a stand-alone system or complemented by an NX series subwoofer for a simple-to-use system for portable applications and installations which call for a compact yet powerful system that can deliver pristine sound over short and medium throw distances.

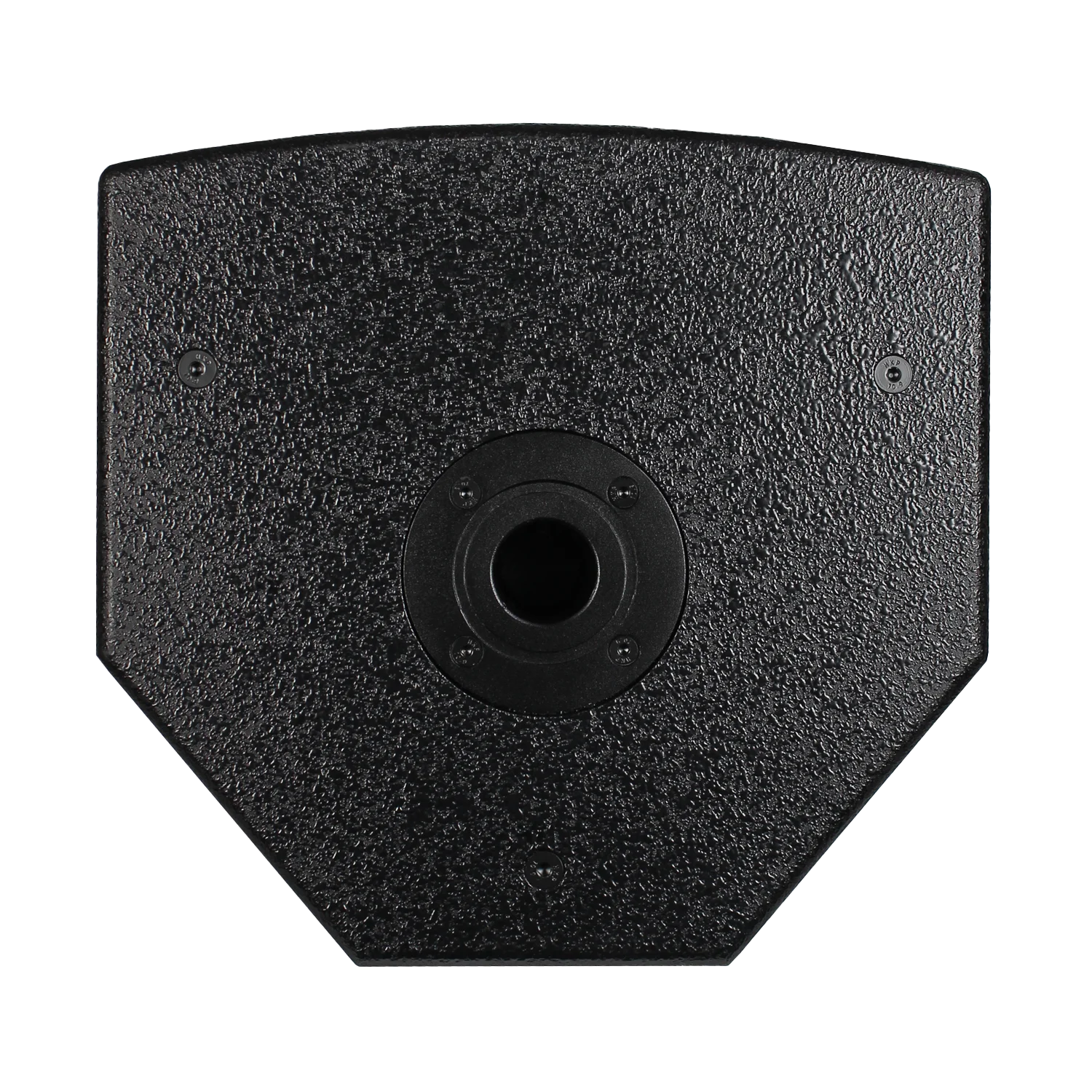

Constructed from birch plywood, finished with black textured paint, and fitted with a screw-free steel grille, M8 rigging points for eyebolt suspension, and a pole-mount socket for almost any installation application.
Acoustic Specifications
FREQUENCY RESPONSE:
60Hz-20kHz (-3dB)
COVERAGE ANGLES:
90° (HORIZONTAL), 50° (VERTICAL) USER-ROTATABLE CONSTANT DIRECTIVITY HORN
SPL:
124dB CONTINUOUS, 130dB PEAK
SENSITIVITY:
98dB/1W/1M
IMPEDANCE:
8 OHM
Transducers
LOW FREQUENCY:
12-INCH, 3-INCH VOICE COIL
HIGH FREQUENCY:
1-INCH, 1.75-INCH VOICE COIL TITANIUM DRIVER WITH OVER-CURRENT & OVER VOLTAGE PROTECTION
Power Section
TOTAL POWER HANDLING:
1600W PEAK, 400W RMS
RECOMMENDED AMPLIFIER:
600W-400W into 8 Ohm
Input / Output Section

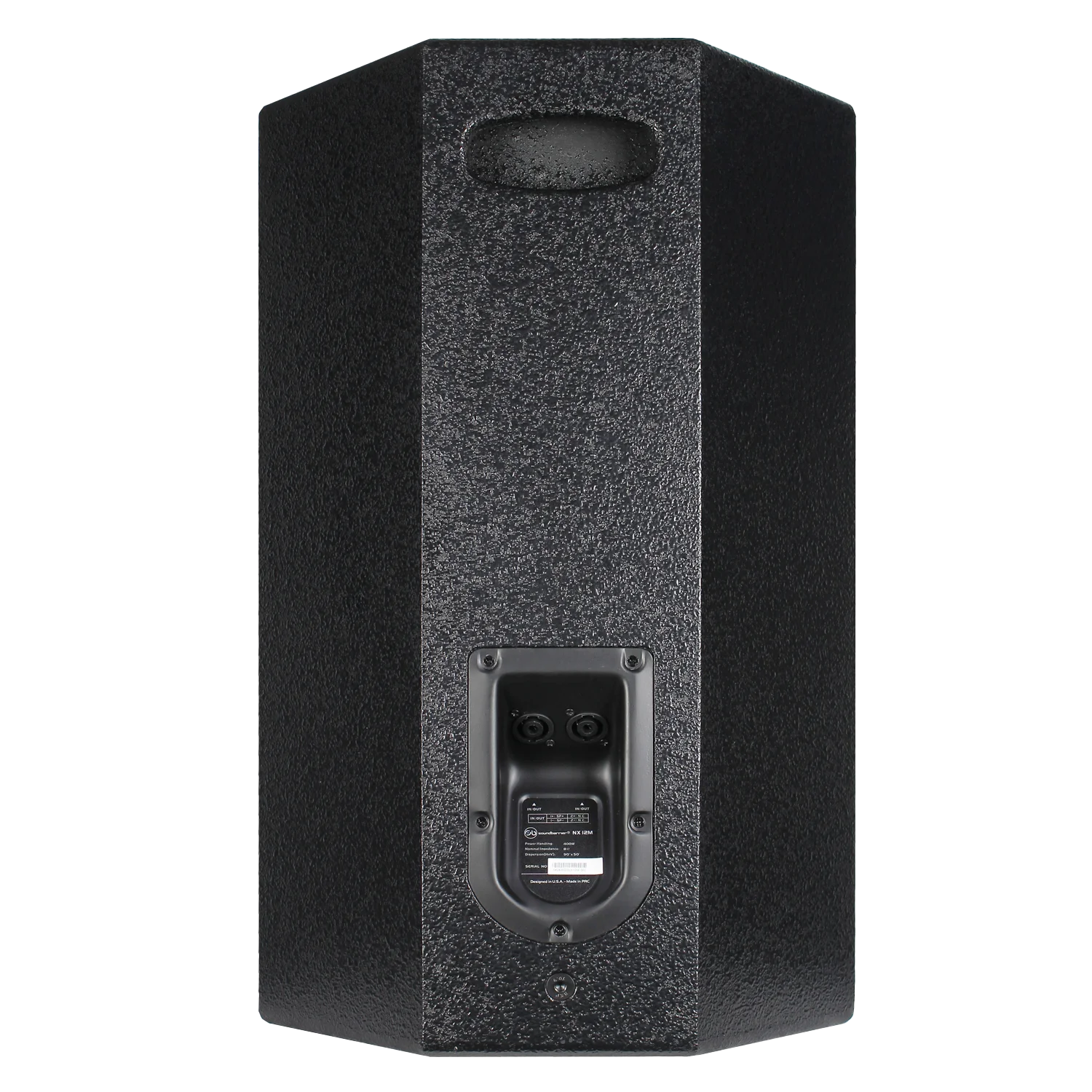

CONNECTORS:
2 x NL4 type (In / Out)
Construction
COLOR:
BLACK TEXTURED POLYURETHANE PAINT
HANDLES:
POCKET HANDLE
CABINET MATERIAL:
15MM BIRCH PLYWOOD
RIGGING:
12 x M8 FLYING POINTS, POLE-MOUNT SOCKET
GRILLE:
BLACK PERFORATED STEEL WITH CLOTH BACKING
Dimensions
WIDTH: 14.2 INCH / 360 mm
DEPTH: 13.4 INCH / 340 mm
HEIGHT: 22.8 INCH / 580 mm
WEIGHT: 55 LB / 25KG
More details on Sound Barrier’s website
