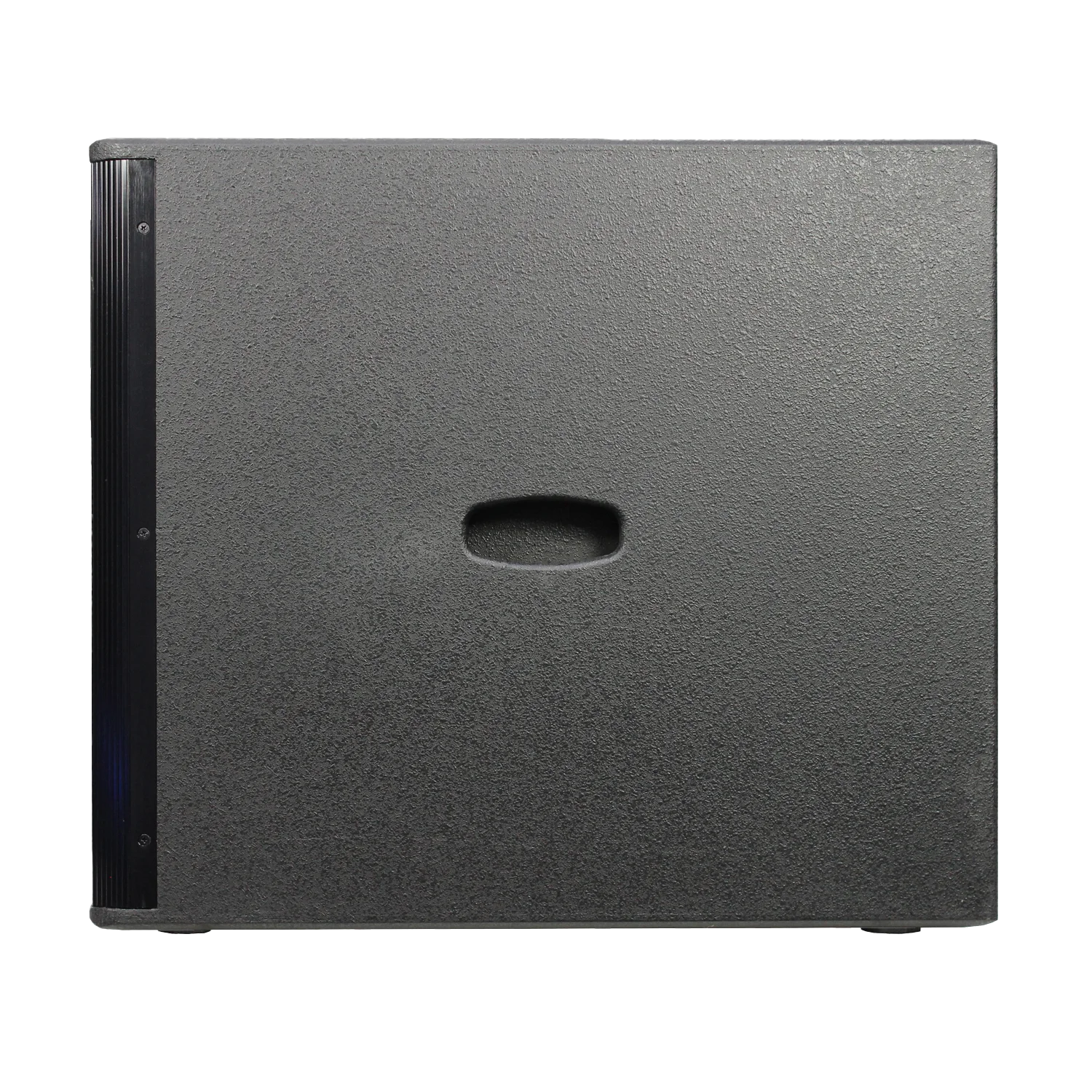

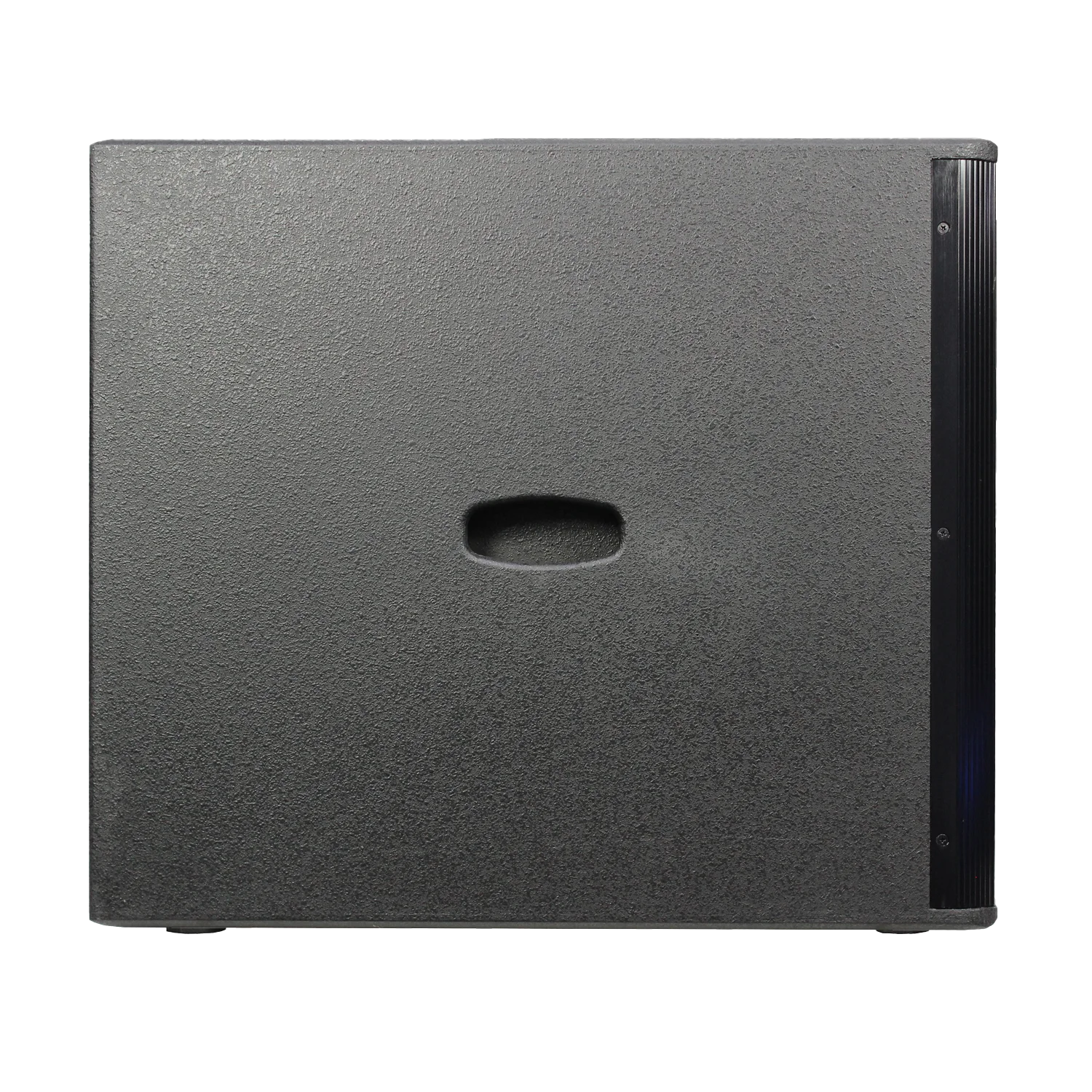

The powerful Sound Barrier NX118S sub-bass system is designed to be used with large-scale NEXONE series systems to extend and increase the total low-frequency output power. The Sound Barrier NX118S provides good mid-bass punch with extended sub-bass output from a direct-radiating 18-inch driver with a 4-inch high-temperature voice coil. The birch wood cabinet is fitted with side wood recessed handles and features large area porting to reduce air noise.
Acoustic Specifications
FREQUENCY RESPONSE:
40Hz-400Hz (-10dB), 35Hz-180Hz (-3dB)
COVERAGE ANGLES:
OMNI DIRECTIONAL
MAX SPL:
132 DB
SENSITIVITY:
100dB/1W/1M
CROSSOVER:
120Hz, -24dB/OCT, LOW PASS FILTER, ACTIVE
IMPEDANCE:
8 OHM
Transducers
LOW FREQUENCY:
18-INCH, 4-INCH VOICE COIL
Power Section
TOTAL POWER HANDLING:
2000W PEAK, 500W RMS
RECOMMENDED AMPLIFIER:
800W-1000W into 8 Ohm
Input / Output Section
INPUT SIGNAL:
NEUTRIK® SPEAKON NL4
OUTPUT CONNECTORS:
NEUTRIK® SPEAKON NL4
Construction
COLOR:
BLACK HIGH RIGIDITY PAINT
HANDLES:
TWO WOOD HANDLE
CABINET MATERIAL:
18MM BIRCH PLYWOOD
GRILLE:
STEEL WITH ACOUSTIC FOAM
Dimensions
WIDTH: 24.4 INCH / 620 mm
DEPTH: 23.6 INCH / 600 mm
HEIGHT: 20.7 INCH / 525 mm
WEIGHT: 86.4 LB / 39.2 KG
More details on Sound Barrier’s website
