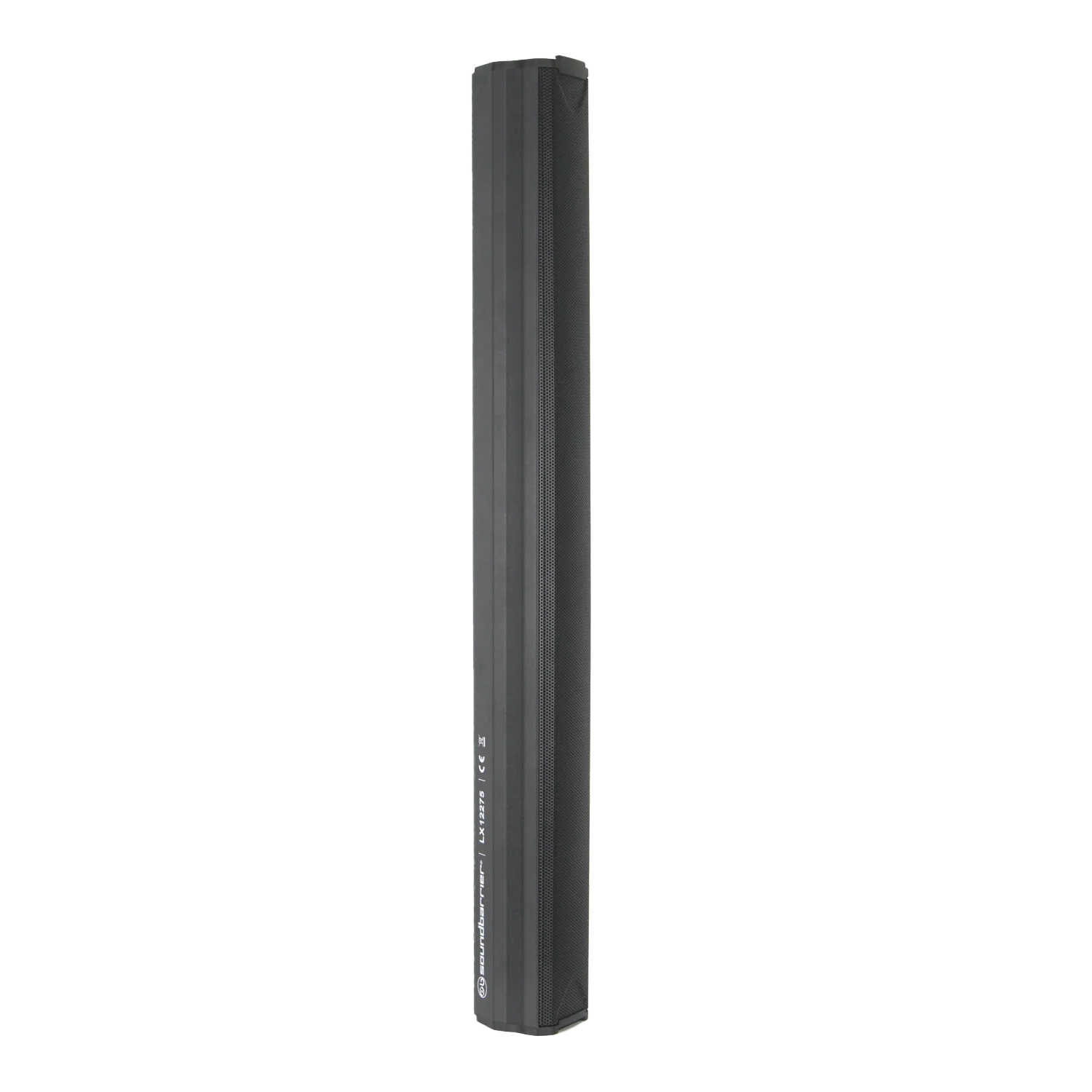

The Sound Barrier LX12275 is designed to deliver consistent pattern control with superior vertical coverage, making it suitable for a wide range of environments. Its slim and compact design allows for seamless integration into various architectural settings. With a height of 37 inches, this line array speaker ensures uniform pattern control, making it an excellent choice for challenging acoustic spaces such as lecture halls, transit centers, conference rooms, cathedrals, multipurpose areas, architectural spaces, and in-wall recessed locations.

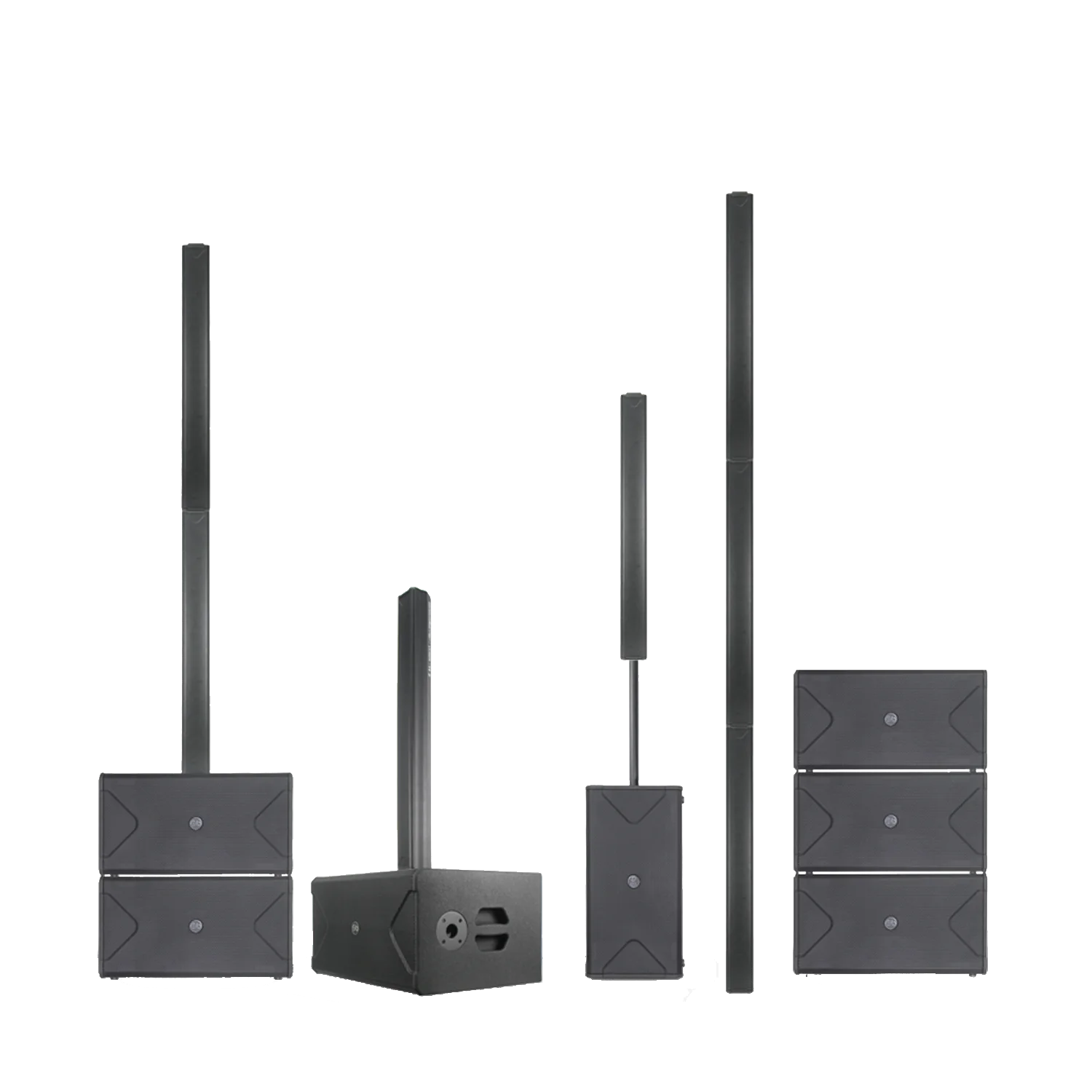

Pairing the Sound Barrier LX12275 with Sound Barrier LX210AS and Sound Barrier LX210S active dual 10” subwoofer systems creates a powerful and scalable high-performance full-range audio solution. The LX12275 can be deployed using different mounting options such as flying, pole-mounting, or direct connection to the LX210AS via the TOUCH-CONNECT connection system.
Utilizing the TOUCH-CONNECT system on the LX210AS allows for the stacking of additional LX12275 units to create an array over 6 feet tall. Alternatively, connecting the LX12275 via the NL4 connector and utilizing the TOUCH-CONNECT system on the LX12275 enables the connection of up to two additional LX12275 column loudspeakers to create an array over 9 feet tall.
Acoustic Specifications
FREQUENCY RESPONSE:
200Hz-20kHz
COVERAGE ANGLES:
120° (HORIZONTAL), 60° (VERTICAL)
MAX SPL:
117 DB
Power Section
TOTAL POWER HANDLING:
800W PEAK
NOMINAL IMPEDANCE:
8 OHM
Transducers
FULL RANGE:
12 x 2.75, 0.751 INCH VOICE COIL, NEODYMIUM MAGNET
Input / Output Section
INPUT SIGNAL:

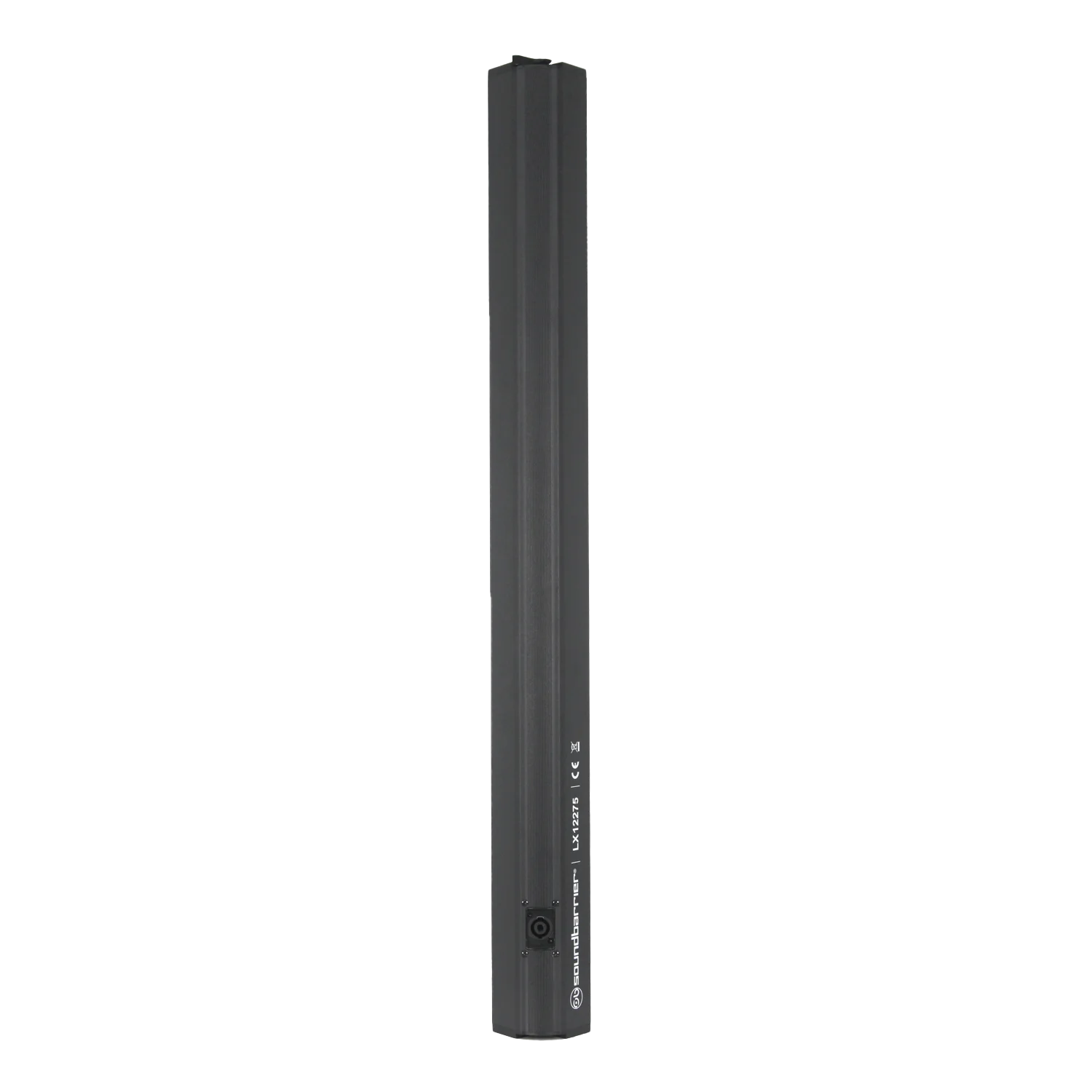

NEUTRIK® SPEAKON NL4, TOUCH-CONNECT
Processor Section
CROSSOVER FREQUENCIES:
1.6KHz -24dB Oct. / LR
Construction
COLOR:
BLACK
HANDLES:
N/A
MATERIAL:
ALUMINUM
RIGGING:
POLEMOUNT SOCKET, (4) M6 FLYING POINTS, TOUCH-CONNECT
GRILLE:
STEEL WITH ACOUSTIC FOAM
Dimensions
WIDTH: 3.7 INCH / 95 mm
DEPTH: 4.2 INCH / 106 mm
HEIGHT: 36.9 INCH / 935 mm
WEIGHT: 14.6 LB / 6.6 KG
Additional specifications available at Sound Barrier’s website
