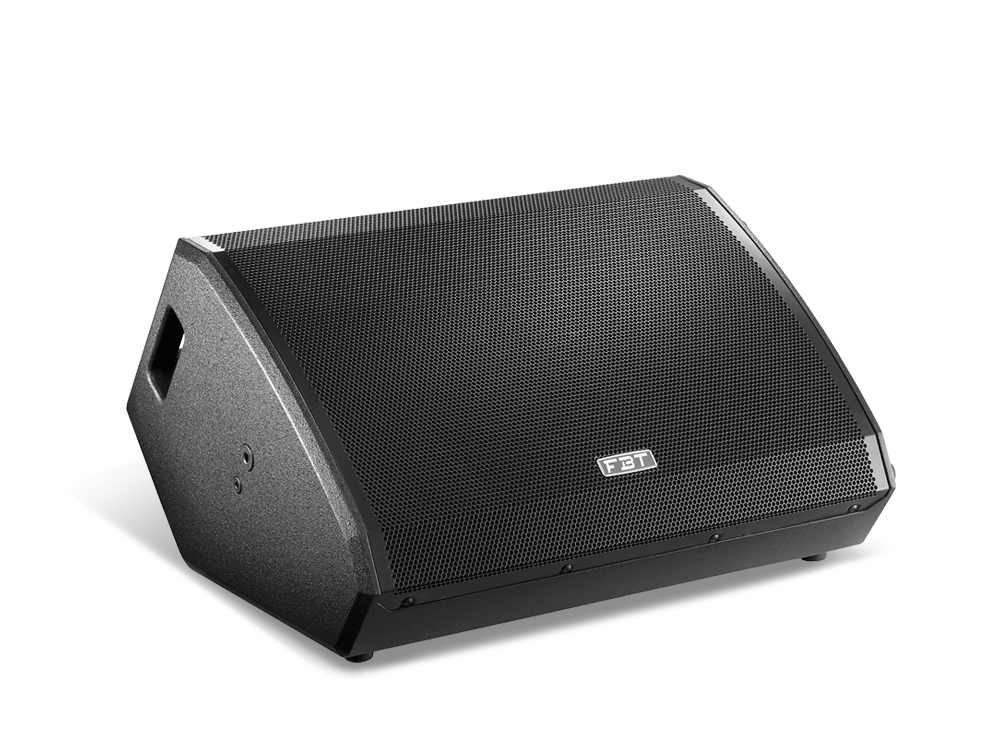

FBT VENTIS 112M

Introducing the FBT VENTIS 112M, a robust passive stage monitor designed for demanding live sound applications. Engineered to deliver clear, powerful sound on stage, this monitor features a built-in passive crossover with soft-trip protection, ensuring reliable performance for both the 12-inch LF woofer with a 2.5-inch voice coil and the 1-inch HF driver with a 1.7-inch voice coil.

The FBT VENTIS 112M is optimized for use with a recommended amplifier of 500W RMS, and it handles long-term power of 250W with a short-term power capacity of 1000W. With a nominal impedance of 8 ohms, it offers a frequency response from 60Hz to 18kHz (-6dB), achieving a sensitivity of 98 dB (@1W/1m) and a maximum SPL of 125 dB continuous and 129 dB peak.

The monitor’s 90° horizontal and vertical dispersion ensures even sound coverage across the stage. Featuring Speakon NL-4 IN connectors for secure connections, the FBT VENTIS 112M is built to deliver professional-grade sound and reliability in live performance settings.

VENTIS 112M Technical Specifications

• Recommended amplifier: 500 W RMS
• Long Term power: 250 W
• Short Term Power: 1000 W
• Nominal impedance: 8 ohm
• Frequency response: 60Hz – 18KHz -6dB
• Low Frequency woofer: 12 – 2.5 coil inch
• High frequency driver: 1 – 1.7 coil inch
• Sensitivity (@1W/1m): 98 dB
• Maximum SPL cont/peak: 125/129 dB
• Dispersion: 90° HxV
• Crossover Frequency: 1.6 KHz
• Recommended HP filter: 50Hz – 12-24db/oct
• Recommended external filter: FBT DLM26
• Input connector: 2 x SPEAKON
• Net Dimension (WxHxD): 563x311x452 / 22.2×12.2×17.8 mm/inch
• Net Weight: 16.5/36.4 kg/lb
• Transport Dimension (WxHxD): 663x411x552 / 26.1×16.2×21.7 mm/inch
• Transport Weight: 21/46.3 kg/lb
