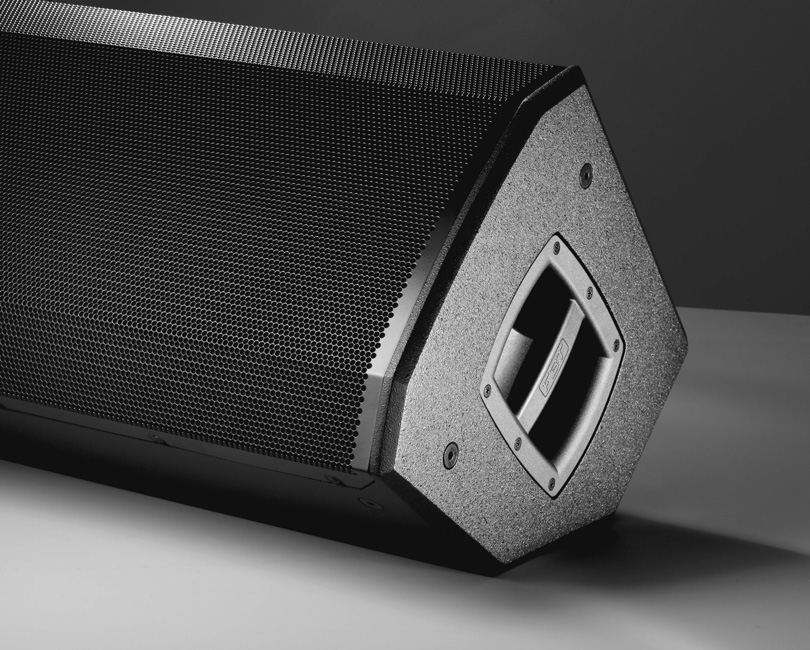

FBT VENTIS 110A

Introducing the FBT VENTIS 110A, a high-performance 2-way bi-amplified loudspeaker engineered for both clarity and power.  The 250mm (10”) LF woofer with a 50mm (2”) voice coil and the 25mm (1”) exit throat B&C HF compression driver with a 36mm (1.4”) voice coil deliver a wide frequency response from 58Hz to 20kHz.

The VENTIS 110A boasts a digital signal processor with a graphic display for easy control and customization, housed in a durable 15 mm (0.59”) birch plywood enclosure with a scratch-resistant finish and internal bracing. Its 80°H x 50°V constant directivity rotatable horn ensures even sound coverage, while the high-efficiency switch mode power supply provides reliable performance.

For versatility, the control panel includes balanced XLR/Jack inputs, XLR LINK OUT, RCA Stereo input, and two volume controls. The speaker also features 6 x M10 suspension points, an optional wall bracket mount thread, a 35mm (1 3/8”) top-hat, and a 45° monitor taper. Transport is made easy with an aluminum handle, and the speaker stand socket provides additional mounting options. The VENTIS 110A is designed to meet the demands of both live performances and installed sound environments with precision and ease.

VENTIS 110A Technical Specifications

• Configuration: 2 way
• Built-in amplifier LF/HF: 700/200 W RMS
• Frequency response: 58Hz – 20KHz -6dB
• Low Frequency woofer: 10 – 2 coil inch
• High Frequency driver: 1 – 1.4 coil inch
• Maximum SPL cont/peak: 124/131 dB
• Dispersion: 80° x 50° rotatable HxV
• Input impedance: 22 Kohm
• Input connector: XLR with loop, RCA ST
• Power cord: 5/16.4 m/ft
• Net Dimension (WxHxD): 329x575x325 / 12.95×22.63×12.79 mm/inch
• Net Weight: 15.6/34.39 Kg/lb
• Transport Dimension (WxHxD): 420x675x400 / 16.53×26.57×15.74 mm/inch
• Transport Weight: 18.1/39.90 Kg/lb
